Here is an example Product of CTJX Series
CTJX Series
PUMPMASTER- Certified to AS/NZS 4020:2005 standard for use with drinking water.
- Delivers strong and even pressure.
- Suitable for above and below ground tanks.
Description
The CTJX-120 Villamate Series is the perfect household pressure pump, reliable and efficient, delivering strong and even pressure. This horizontal 304 Stainless Steel self-priming jet pump is ideal for rainwater tanks or whole house supply.
The CTJX-120 is available as a bare pump or with either an electronic pressure controller or a conventional pressure switch and tank.
Features
- Self-priming.
- Single phase.
- Efficient power consumption.
- Automatic pressure controller (stop & start on demand) with Run Dry Protection.
- Quick connect plug & play connection for pressure controller or pressure switch.
- Maximum liquid temperature: 60° C.
Applications
- Water transfer.
- Pressure boosting.
- Pumping from underground tanks.
- Household water supply and irrigation.
- Rainwater tank pump set.

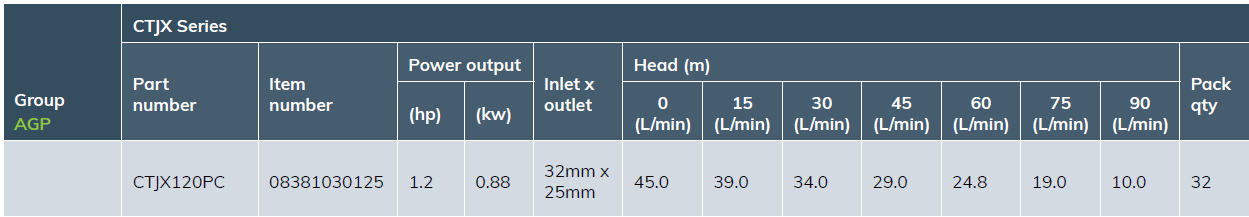

CTJX Specification

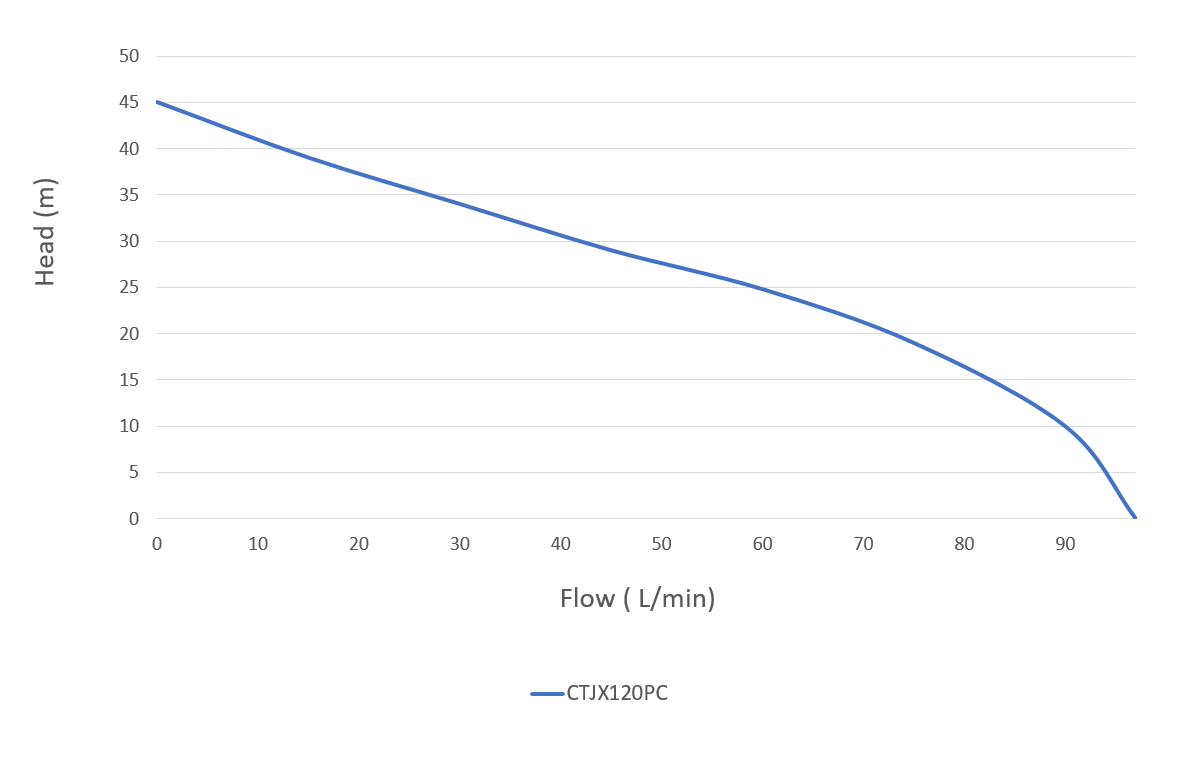

CTJX120PC Performance Curve
Highlights
- Run Dry Protection and self-priming.
- Automatic pressure controller (stop & start on demand).
- Quick connect plug & play connection for pressure controller.
- Efficient power consumption.
Benefits
- Certified to AS/NZS 4020:2005 standard for use with drinking water.
- Delivers strong and even pressure.
- Suitable for above and below ground tanks.
- Suitable for use with washing machines.
- Polycarbonate/Noryl diffuser and impeller for improved efficiency.
- Domestic / residential.
- Pressure boosting.
- Water transfer.
- Pumping from underground tanks.
- Household water supply and irrigation.
- Household water supply and irrigation.
